WoneNice 12V LED Low Profile Submersible Trailer Tail Light Kit, rectangle LED Trailer Lights with Wiring Harness Combined Stop, Tail Lights, Turn Function for Boat Trailer, 12V

Price: $34.99
(as of Jun 12, 2024 11:56:49 UTC – Details)

Product Description

Easy to upgrade/replace your current incandescent Bulb.

Comes with everything needed to install and user instructions, easy to install follow directions

Super brightness visibility and Longer Lifetime LED advantage

Waterproof and Submersible, but do not submerge for long periods of time

Complies with DOT standards

Application:

Universal for Under 80″ Inch width towing vehicle, like truck, trailer, tractor，semi-trailer，Dump Truck，boat, bus, Lorry, Van, caravan, snowmobile, Camper, RV.etc

High visibility

Right Tail Light have 16LEDS : 12 rear facing large LEDs and 4 SMD LED-on Side Marker

Left Tail Light have 19LEDS : 12 rear facing large LEDs ,4 SMD LED-on Side Marker and 3 white LEDs facing down(For license Plate illumination)

Super clear and brighter SMD 5050 lamp beads produces a super light, no glare.

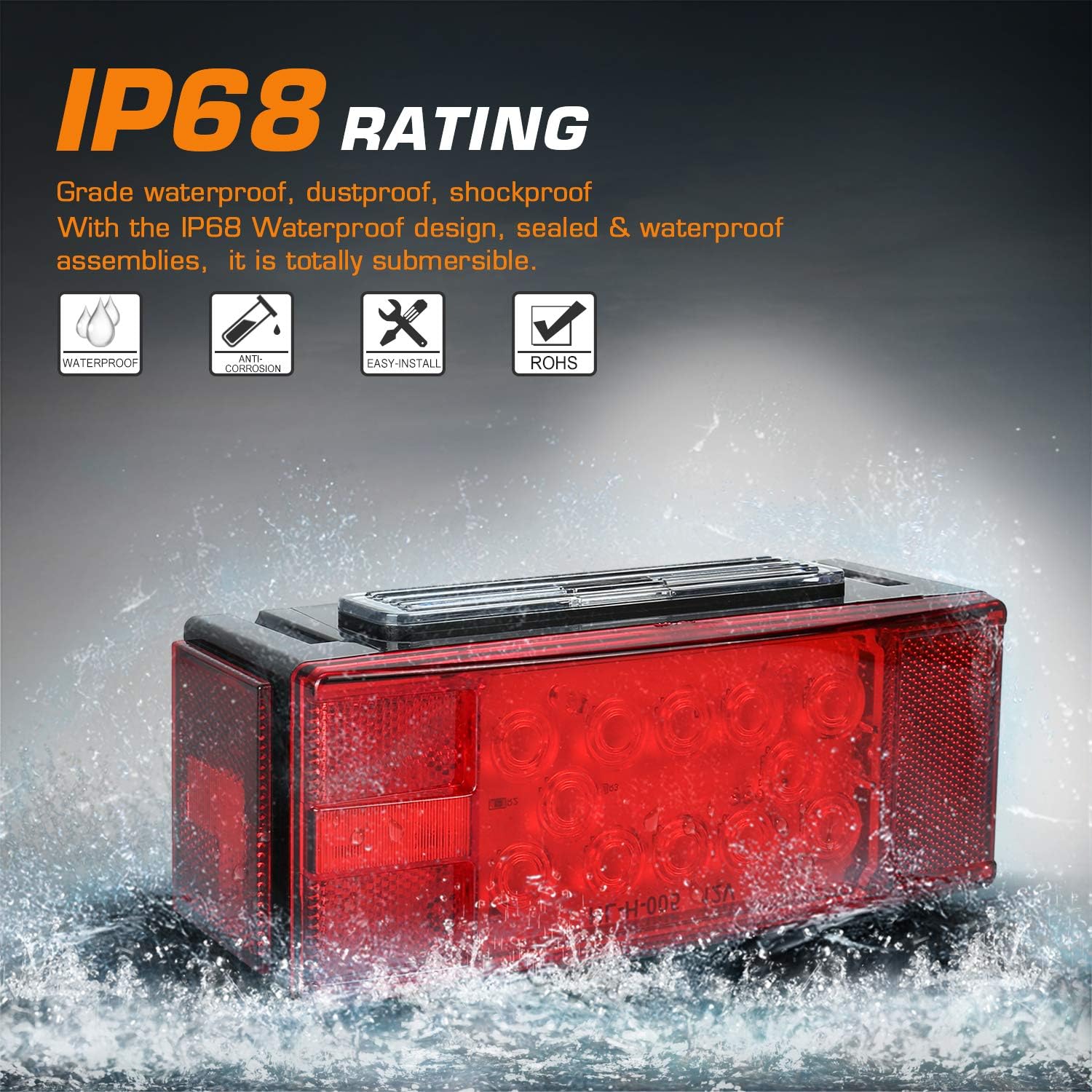

IP68 Waterproof and Submersible

It will prevent from any sand, water, dirt, snow or dust; it is totally submersible(Test Underwater light for 24 hours), don’t worry about getting the trailer down into the water

Durable

PC material, high light transmittance, oxidation resistance

All-weather molded plastic housing and durable protective lens

On the trailer wire harness plug:

White is ground

Brown is tail lights

Yellow is left turn signal （usually connect with license plate light side）

Green is right turn signal （usually connect without license plate light side ）

On the tail lights:

white is ground(Attach the WHITE GROUND wire to the towing vehicle’s frame )

brown is tail lights

Yellow/Green is turn signal/brake

On the side lights:

Black is ground(Attach the BLACK GROUND wire to the towing vehicle’s frame )

Yellow is side light

Package Included:

2x running/stop/tail/turn signal lights, 2 x marker lights license plate bracket and Mounting Hardware, 25ft length of 4-pin wire Harness( 21.65ft length wire harness and 3.93ft wire harness ) User Manual

Complete Trailer Light Kit: This Trailer Light Kit includes 2 combination tail and brake/turn signals lights, 2 amber LED marker lights ,25-ft wiring harness,license plate bracket and mounting hardware bag, everything you need to do the install included.
Waterproof and Submersible trailer lights: The circuit board is completely sealed and IP68 waterproof, which protects the board from short circuit even soak in the water, it can work long hour in rainy days, fog day or snow day, it is totally submersible(Test Underwater light for 24 hours).
Super clear and brighter SMD 5050 lamp beads produces a super light, no glare, Up to 50,000 hrs life expectancy
Compliant with DOT standards, perfect replacement trailer lights for RV, tractors, canoes,towing vehicle, truck, trailer, boat, bus, Lorry, Van, caravan, snowmobile etc
Product Size: 8*2.95*2.83 inches, 25ft wiring harness, so that it is long enough to reach end of trailer,instruction included.
